Thermocouple, RTD and MI Accessories
Brass Terminals
We manufacture high quality nickel plated brass terminals. These nickel plated brass terminals are fitted with nickel platted brass screws they are made from extruded free cutting brass rods as per IS 319 standard with Nickel plating. They are available in various shapes such as :
- Pillar Type
- Round Brass Terminals
- Square Brass Terminals
All the above brass terminals can also be fabricated as per client specifications.
Ceramic Block
Industrial Ceramics is a customer-focused business manufacturing ceramic components, Assemblies and related products for niche applications within a variety of growth markets.
The different grades manufactured by us in Industrial Ceramics / Technical Ceramics are as follows :
- Porcelain
- Steatite
- Cordierite
- High Alumina
We can provide ceramic blocks of any of the above mentioned grades but majorly the preferred material used is steatite. Ceramic blocks are adjustable for 23mm, 33mm and 45 mm pcd of temperature sensor (thermocouple head) enclosures.
The ceramic blocks are available simplex, duplex or triplex configuration in various shapes as mentioned in our catalogue (code ‘cb’).
These ceramic blocks are also available with/without brass terminal (refer our catalogue under category ‘cbt’).
Temperature Sensor Enclosure(Connection Head)
Connection heads provide the greatest protection for electrical terminations of the transducer and associated instrumentation while maintaining easy access to the terminals. HK connection heads are designed to meet virtually all industrial needs. All our connection heads are fully gasketed for completely weatherproof installations. HK connection heads are available in various materials :
- Aluminum die-cast.
- Stainless steel casting (investment casting)
- Stainless steel casting(bar stock).
- Plastic (industrial engineering)
- Bakelite(thermos setting)
CONNECTION HEADS ARE MAJORLY OF TWO DESIGNS :
- Threaded cap type(with stainless steel chain)
- Hinge cap type
HK CONNECTION HEADS ARE AVAILABLE IN VARIOUS SIZES WITH SIMPLEX/DUPLEX CABLE ENTRY :
- Miniature heads (19 mm PCD)
- General purpose weatherproof head(33 mm/45 mm PCD)
- Flp(flame proof )heads.( II A , II B , II C)
(*ALL HK CONNECTION HEADS ARE PROVIDED WITH 100% TEST CERFICATE)
Bayonet Adaptors and Holders
Bayonet Cap (Holder)
| Material | Chrome plated Brass |
| Available Size | Ø11mm, Ø12.5mm, Ø14.5mm, Ø16.5mm |
| Available in | Single or Double Slot |
Adaptors:
| Material | Chrome plated Brass |
| Available Size | 1/8″BSP, 1/4″BSP, 1/2″BSW, 3/8″BSP, 5/8″BSW |
| Available in | Single or Double Slot |

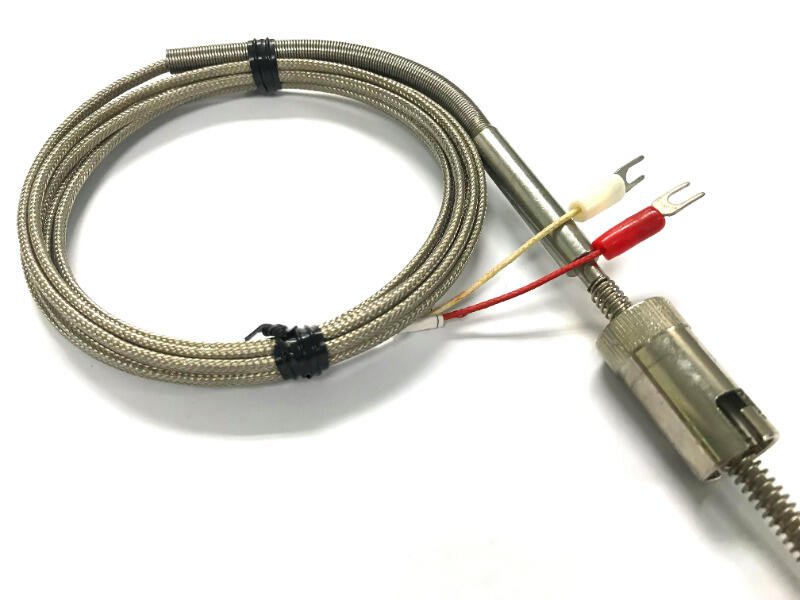

Thermocouple Assemblies
Our thermocouple sensors assemblies comprises of SS pipes, SS spring & brass holder. These are available in various types such as a washer, straight spring, LRB spring loaded with bayonet, LBF spring loaded with bayonet, transition etc.
Our THERMOCOUPLE ASSEMBLIES are available in different qualities to meet various applications in the industry
| Material | SS Pipes, SS Spring & Brass Holder |
| Types | Washer, Straight Spring Loaded Bayonet, LRB Spring Loaded with Bayonet, ‘L’ Spring Loaded with Bayonet, Tip Adjustable with Bayonet, Spring Movable with Bayonet, In melt (Bolt), Fully Adjustable with Bayonet, Straight Rotating Spring with Bayonet, ‘L’ Rotating Spring with bayonet, Transition (Hex Bush) |
M. I. Cables
We manufacture and export a wide variety of M.S. cables. These are available in grey color and find their applications & usage in a varied number of industries. We are able to design styles in various specifications according to the drawings and samples by the clients.
| Available Materials | SS 316, SS310, Inconel 600 |
| Available Sizes | Ø 0.5mm Ø 1.0mm Ø 1.5mm, Ø 3mm, Ø 4.5mm, Ø 6mm, Ø 8mm |
| Available Type | Simplex/Duplex |
For RTD:
| Available Sizes | Ø 3mm, Ø 5mm, Ø 6mm |
| Available in | 4 wire / 6 wire in SS 316 only |
Note : upto 100 mtr single length will be provided.
M. I. Spring Loaded Assemblies
Plug Sockets
Plug socket are available in either small (flat pin), big (round pin). Plugs sockets are devices that connect appliances, portable light fixtures, and other electrically-operated devices to the commercial power supply so that electric power can flow to them. They have contacts that are pins or blades that connect mechanically and electrically to holes or slots in the socket. Our range complys with the national & international standards.
Type :
J, K, T, R, RTD Available in Indian & Imported make SS Clamp:
- To fit plug socket with flexible lead wire
- To fit socket with MI cables
High Temperature Ceramic Tubes
Recrystallized Alumina/ Alsint 99,7 is an impervious material. It provides the basis for one of the most important technical oxide ceramic materials in the group.
Recrystallized Alumina /Alsint 99.7% Al 2 O 3 manufactured products have established themselves as the material of choice for a wide range of product types including… Tubes, Rods, Crucibles, Thermocouple protection tubes, Insulators and machined components.
H.K THERMOCOUPLE TUBES ARE SLIP CAST OR EXTRUDED TYPE.
Ceramic Insulator
We manufacture and export a wide variety of ceramic insulators, high temperature ceramic tube, high temperature cement and SS conduits. Ceramic insulators are often used as electrical insulators in chemically and electrically hostile environments. These ceramic insulators are often prepared from compositions containing lead, such as lead silicate. The lead is utilized to lower the firing temperature of the ceramic material and to promote bonding and sintering of other constituents in the ceramic used to form the insulator. High voltage insulators of ceramic materials are mainly used in outdoor switching stations and outdoor lines.
| Available in | 1 hole / 2 hole / 4 hole / 6 hole for Simplex, Duplex in Round & Oval. |
| Available size | Ø2.7mm to Ø13.5mm |
Thermocouple Extension/ Compensating Cables
These Cables Can Also Be Termed As Instrumentation Cables, Since They Are Used For Process Temperature Measurement. The Construction Is Similar To Paired Instrumentation Cable But The Conductor Material Is Different. Thermocouple Are Used In Process To Sense Temperature And Is Connected To The Pyrometers For Indication And Control. The Thermocouple And Pyrometers Are Electrically Connected By Thermocouple Extension/Compensating Cables. The Conductors Used For These Cables Are Required To Have Similar Thermoelectric(Emf) Properties As That To The Thermocouple Used For Sensing The Temperature. The Cables Manufactured As Per Is:8784, Ansi-96.1, B.S And Customer Specification.
Conductor Size: 3/22 SWG,1/22 SWG, 3/24 SWG,1/24 SWG,7/24 SWG, 48/36 SWG,40/36 SWG,14/36 SWG,7/36 SWG
Insulations: PVC, ASBESTOS, FIBREGLASS, TEFLON/PTFE, KEPTON, SILK, COTTON, RUBBER
PVC/PVC :
CORES PVC INSULATED,PVC SHEATHED.
SHAPE –FLAT/OVEL
PVC/ASBESTOS :
CORES PVC INSULATED,ASBESTOSYARN,BRAID JACKETED.
SHAPE-FLAT.
PVC/PVC ASBESTOS :
CORES PVC INSULATED,SHEATHED,FINALLY ASBESTOS YARN BRAIDED JACKETED.
SHAPE – FLAT.
FG/FG :
CORES DOUBLE FIBRE GLASS YARN,LAPPEDINSULATED,LAIDPARRALELL&FIBRE GLASS YARN BRAID INSULATED,VARNISHED.
FG/FG/SS :
CORES DOUBLE FIBRE GLASS YARN,LAPPEDINSULATED,LAIDPARRALELL&FIBRE GLASS YARN BRAID INSULATED,VARNISHED WITH SS WIRE MESHED/ OR BRAID SHEILDED.
FG/FG/ASBESTOS :
CORES DOUBLE FIBRE GLASS YARN,LAPPEDINSULATED,FIBRE GLASS YARN,BRAIDEDVARNISHED,LAID PARALLEL & FINALLY ASBESTOS YARN,BRAID JACKETED.
SHAPE- FLAT.
ASBESTOS/ASBESTOS :
CORES DOUBLE FIBRE GLASS YARN,LAPPEDINSULATED,VARNISHED& ASBESTOS YARN LAPPED/BRAID INSULATED.LAID PARALLEL COMMONLY ASBESTOS YARN BRAID JACKETED,UNVARNISHED.
SHAPE – FLAT
TEFLON/TEFLON :
CORES TEFLON INSULATED LAID PARALLEL,TEFLON JACKETED.
SHAPE – FLAT.
SILK/SILK :
CORES DOUBLE YARN,LAPPEDINSULATED,CORETWISTED,RE-SILK YARN LAPPED INSULATED,CORETWISTED,RE-SILK YARN LAPPED INSULATED.
SHAPE – TWISTED
NEOPRENE RUBBER :
CORES RUBBER INSULATED,JUTETWISTED,POLYSTER TAPPED FINALLY RUBBER SHEATHED.
SHAPE – ROUND.
RTD Sheet(PTFE)/ Teflon Wires
| Conductor | SINGLE/MULTI STRAND;SILVER/NICKEL PLATED COPPER. |
| Insulation | PTFE SPIRALLY WRAPPED & FUSED. |
| Voltage Rating | 250V (ET),600V (E),1100V(EE) |
